Description

Features

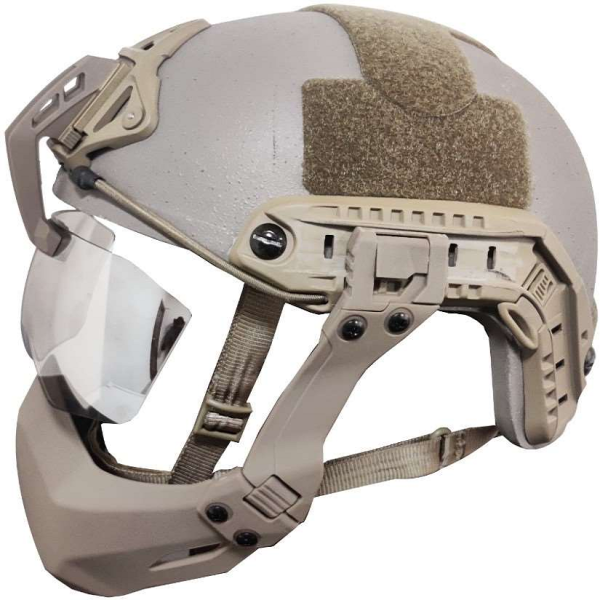

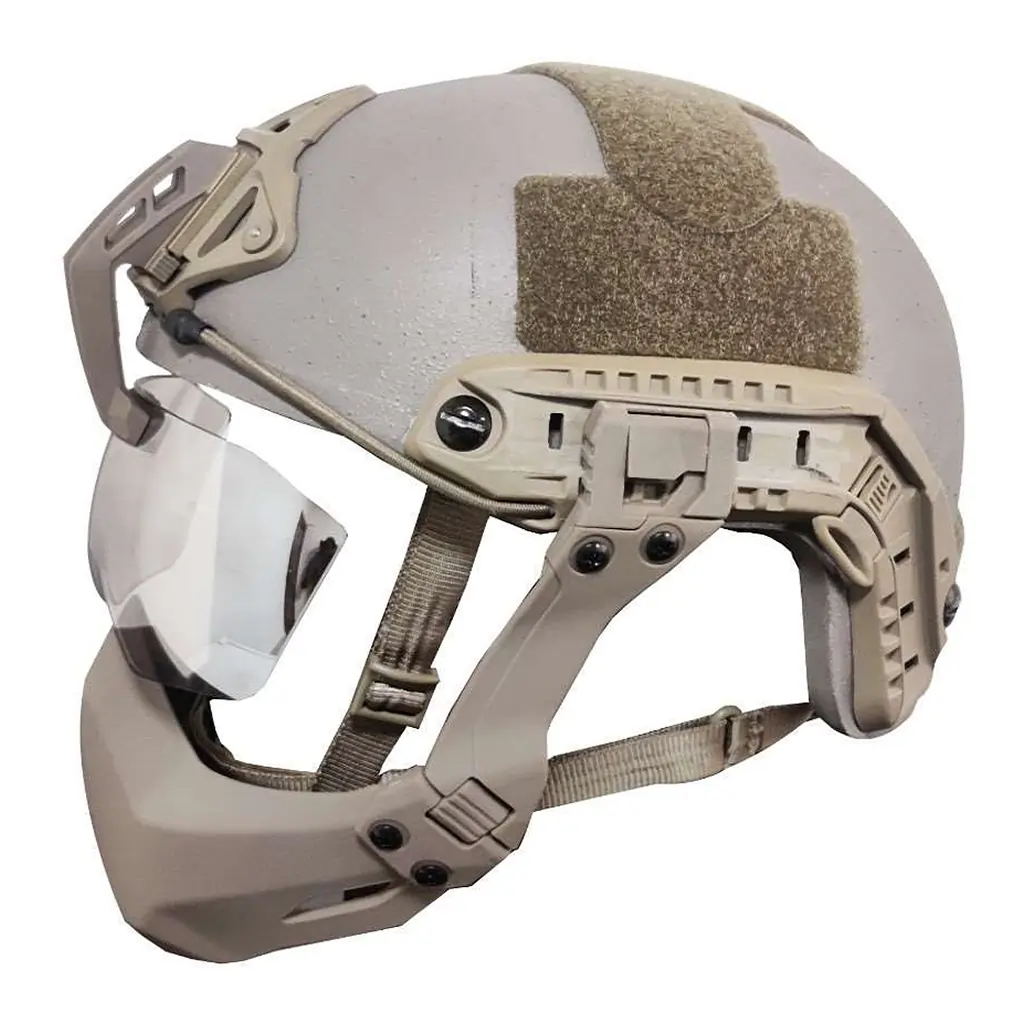

• High cut shell made of a hybrid composite of Carbon, Uni-directional Polyethylene, and Woven Aramid.
• Raised ear cut allows for integration with communications headsets.
• Features an Hard Shell 3-Point rhino Shroud for universal capability with most NVG mounts, Accessory
• Rail Connectors (ARCs) with hook bungees, and external loop.
• Scalable design allows for compatibility with Hard Shell visors, mandibles, handgun face shields, and ballistic appliques.
• Available with four suspension/retention options.

Suspension & Retention Options

• The Hard Shell Liner provides one-piece full coverage impact layer with modular pads, designed for shockwave attenuation. Available in two retention options: Hard Shell Liner with Worm Dial Fitb and, Head-Loc 4-Point Chinstrap which features a quick adjustment in a low profile fitband and Hard Shell Liner with H-Nape, Head Loc 4- Point Chinstrap, a traditional retention system option designed to support heavier NVGs (PVS-15and ANVis-9) worn during rigorous activities.
• The EPP pads provide a light-weight multi-impact, ventilated liner using comfort foam. Available in two retention options: EPP Pads with Worm Dial Fitband, Head-Loc 4-Point Chinstrap, which features a quick adjustment in a low profile fitband and EPP Pads with OCC-Dial Fitband, Head-Loc 4-Point Chinstrap with replaceable leather front, nape, and side pads that quickly detach to allow convenient donning and doffing of communication headset with internal headbands.

Protection Level



Projectile	FPS Minimum
9 mm FMJ RN (V0 at 0° )	1.450 fps with ( max ) back face deformation of 16.0 mm ( right left and crown ) and 25.4 mm (front and back.)

Coverage and Weight



Head Size	Small	Medium	Large	X-Large
Coverage Aera	950 cm2	1020 cm2	1100 cm2	1200 cm2
Shell Weight ( Shell  with Paint and Edge band )	850 gram	950 gram	1050 gram	1150 gram



Helmet Shell with Suspension / Retention



Suspension / Retention Option	Small	Medium	Large	X- Large
Impact Liner with Comfort Pads	1200 gram	1250 gram	1300 gram	1400 gram

• NOTE – There is Tolerance of +/- 5% on all measurements and Weight.



Colors

• Urban Tan
• Foliage Green
• Multi Cam
• Desert Marpat
• Black

(can be customized as per requirement)



Optional Accessories

• Helmet Bag
• Bungee cord
• Velcro
• NVD Mount
• NVG Shroud
• Picatinny Rail Adaptor

Warranty

5 year performance warranty on Helmet Shell (Subject to usage conditions)
