How Are Ballistic Helmets Made?

In the realm of protective gear, ballistic helmets constitute an integral part. The major function of ballistic helmets is to provide protection to the head and surrounding areas against potentially fatal ballistic threats. Mostly used by military personnel, law enforcement officials, and tactical groups, these essential protective gear are precisely developed to provide effective protection against bullets and shrapnel while also ensuring the wearer’s comfort.

In this write-up, we will discuss the manufacturing process of ballistic helmets in detail and understand how a fine blend of craftsmanship and advanced technologies is employed in their making.

Materials Used in Making Ballistic Helmets

Aramid Fibers

Aramid fibers are a key component in ballistic helmet manufacture. One of the most commonly used Aramid fibers is Kevlar (developed by DuPont), which is a proven material for its effectiveness and durability. Known for their high strength-to-weight ratio, they are exceptionally good at absorbing and dispersing impact energy. Kevlar, a longstanding icon of reliability in ballistic protection, is still a popular material because of its proven effectiveness and durability.

Ultra-High Molecular Weight Polyethylene (UHMWPE) Fibers

Ultra-high molecular Weight Polyethylene (UHMWPE) fibers are another alternative used for making ballistic helmets. Comparatively lighter than typical aramid fibers, UHMWPE still has high tensile strength. This property enables manufacturers of helmets to provide equivalent ballistic protection while improving wearer comfort and maneuverability.

Phenolic Resins

Phenolic resins are used to bind the ballistic fibers together, enhancing the shell’s rigidity and resistance against external stressors like heat, abrasion, and shear forces. Manufacturers use phenolic resins to make composite materials with improved structural integrity and ballistic performance by impregnating ballistic fibers with the resin and subjecting them to high temperatures and pressures.

Kevlar VS UHMWPE Helmets

The choice between Kevlar and UHMWPE as materials for ballistic helmets is based on a variety of factors, ranging from performance requirements to wearer preferences to budget considerations. As previously discussed, ballistic helmets made of Kevlar are known for their high strength-to-weight ratio, making them a mainstay in ballistic protection applications for a long time. UHMWPE helmets, on the other hand, offer a compelling alternative, combining equivalent ballistic performance, reduced weight, and improved wearer comfort.

Kevlar helmets are well-known for their ability to absorb impact energy, whereas UHMWPE helmets are ideal for long-term use thanks to their lightweight nature. Furthermore, UHMWPE helmets may improve mobility and maneuverability, particularly in situations demanding rapid movements.

Finally, the choice between Kevlar and UHMWPE helmets comes down to the specific needs of the user. Making the right choice can certainly maximize the performance of ballistic helmets.

Manufacturing Process of Ballistic Helmets

Manufacturing of ballistic helmet

The process of making bulletproof helmets or ballistic helmets starts with getting the required number of layers, impregnated with resin. The layers are further cut into different shapes and sizes. The shapes can then be placed in a mold and compressed to create the helmet shape.

The helmets are compression molded at constant temperature and pressure for a fixed amount of time. For instance, the Kevlar/Phenolic PASGT helmet needs constant pressure and temperatures. To achieve the desired pressures, hydraulic systems are put to use with metal molds for compression molding. After molding, the helmets may need trimming to complete the production process. We have explained the process in brief above using a simplified approach; however, the actual process is significantly more complex. Read on to learn about the details of the manufacturing process of ballistic helmets!

Designing and Prototyping

The process of making ballistic helmets begins with the design and prototyping stage, in which designers and engineers work together to create helmet designs that combine utility, comfort, and protection in the best possible way. Virtual prototypes are meticulously created using sophisticated computer-aided design (CAD) tools, enabling iterative improvement and optimization of the helmet’s form and features.

Manufacturers may put prototype helmets through extensive testing and assessment through prototyping, which acts as a testing ground for new ideas. Iterative design improvements are based on feedback from user trials and real-world simulations, guaranteeing that the finished product will satisfy the strict requirements of both regulatory bodies and end users.

Fabrication of Helmet Shell

Fabrication of Helmet shell

Once the design is complete, the production process moves on to the creation of the helmet shell. To optimize ballistic performance, this complex procedure involves precisely layering ballistic fibers, such as Kevlar or UHMWPE, in predetermined orientations. After being infused with resin, the ballistic fibers are carefully molded into strong composite materials that have the appropriate geometry for the helmet shell.

Compression molding and vacuum infusion are two examples of advanced manufacturing processes that guarantee consistency and homogeneity in the finished product. Strict quality control methods ensure that every stage of the fabrication process is carried out with precision, maintaining the integrity and functionality of the helmet shell.

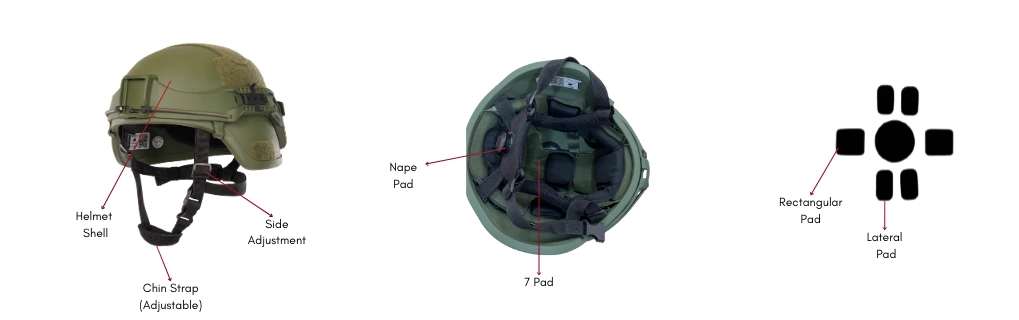

Assembly of Suspension Systems

The suspension system is the foundation of a helmet’s functionality, ensuring the wearer’s comfort, stability, and fit. The helmet shell is seamlessly integrated with adjustable straps, padding, and retention systems during assembly, providing a secure fit and uniform distribution of impact forces across the wearer’s head. The suspension system is designed with the objective of reducing pressure points and maximizing wearer comfort, allowing for extended wear in demanding operational scenarios.

Manufacturers use a wide variety of suspension system designs, from conventional harness systems to modular setups that support extra attachments and accessories. Owing to its adaptability, end users can customize their helmets to meet their needs and preferences.

Quality Control

Every aspect of the manufacturing process is subject to strict quality control procedures, which is crucial for establishing quality. Every component is carefully examined and tested to find any flaws or variations from the specifications. Each step of the production process, from material characterization to dimensional checks, is closely monitored to guarantee the reliability and effectiveness of the finished helmets.

In addition to in-process inspections, comprehensive quality assurance testing is carried out on completed helmets to validate their ballistic performance, impact resistance, and durability. This all-encompassing quality control strategy emphasizes that every helmet meets the strict requirements of end users and regulatory bodies.

Testing and Certification

Ballistic helmets go through a series of tests to confirm that they meet industry standards and legal criteria. Testing procedures include environmental conditioning, impact testing, ballistic resistance testing, and certification from independent testing labs and recognized regulatory bodies.

It is crucial to follow the strict performance standards set by institutions like the National Institute of Justice (NIJ) in the US. Adhering to these criteria is a mark of quality that establishes trust among end users.


Making of Ballistic Helmet

The manufacturing of ballistic helmets is a very complex and scientific procedure that combines engineering, materials science, and craftsmanship. Every step of the process is meticulously executed to ensure that the final product meets the requirements of law enforcement and military personnel.

Over time, as innovation has led to technological advancements, ballistic helmet production has also evolved. Manufacturers are also continuously ramping up their production process to stay tuned with current times.
