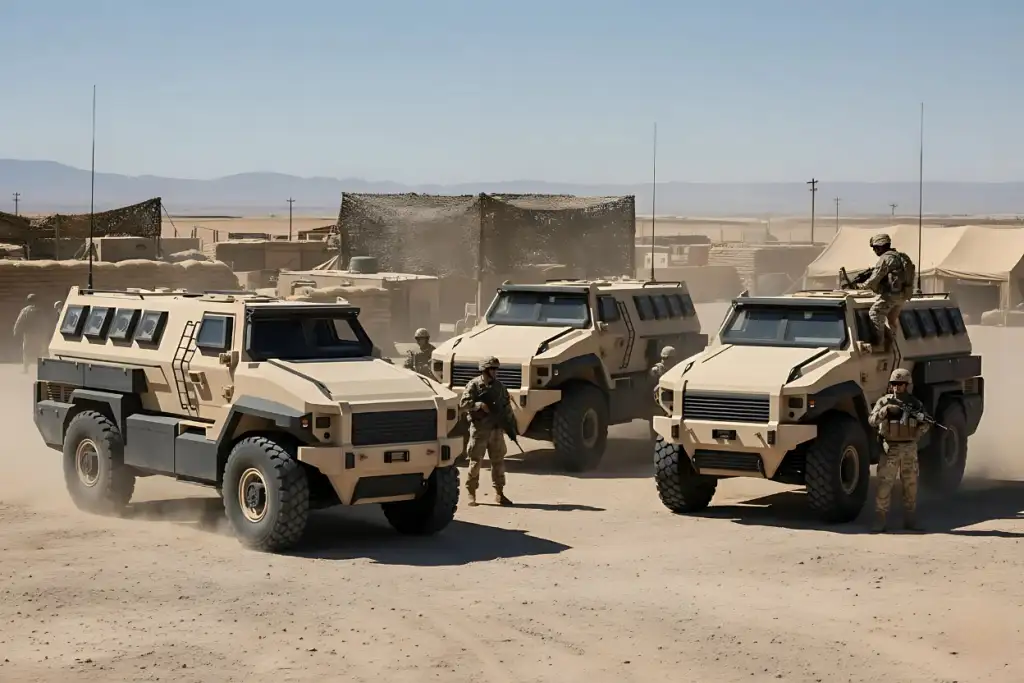

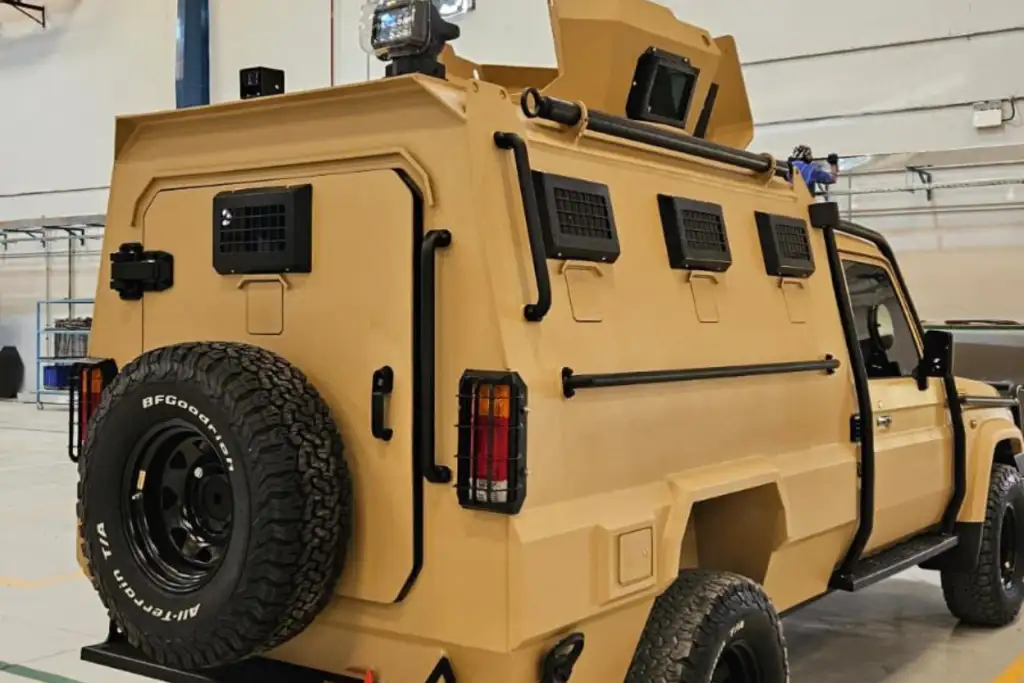

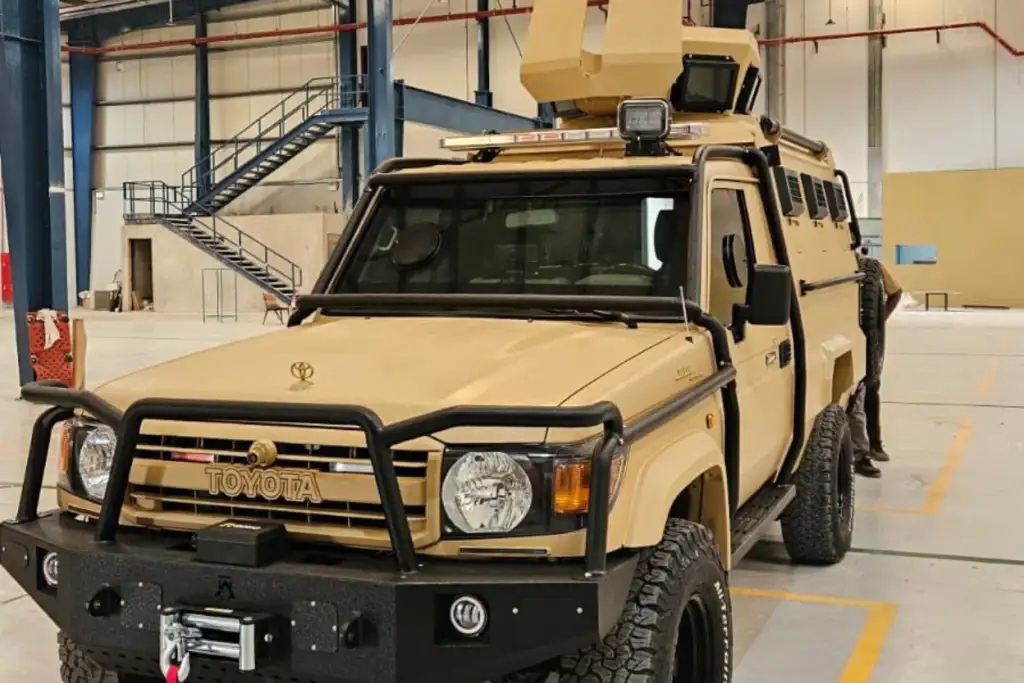

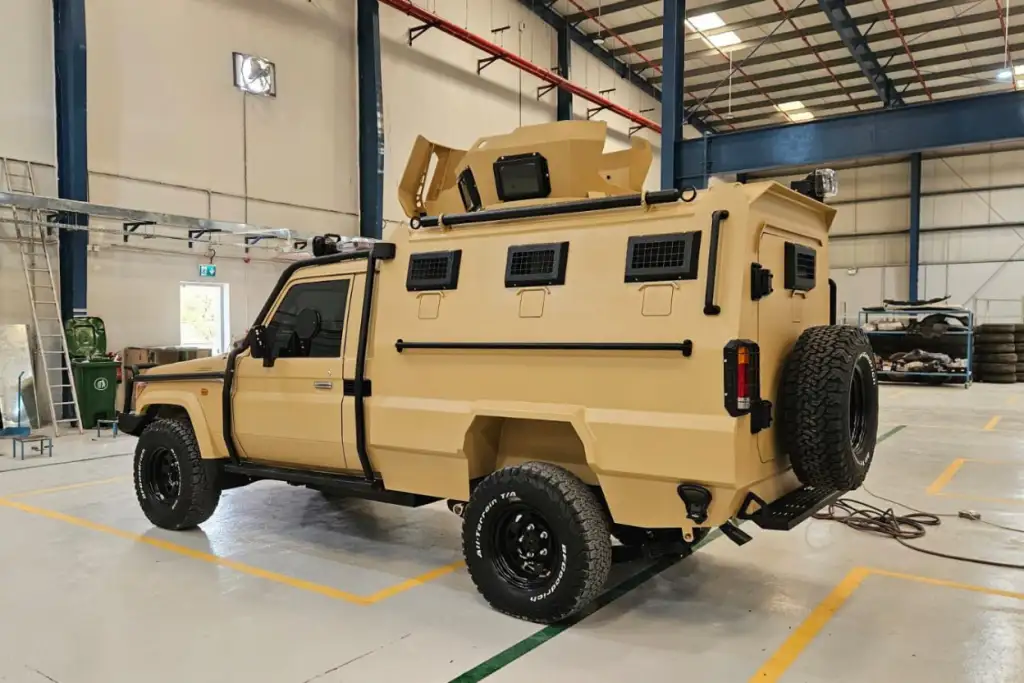

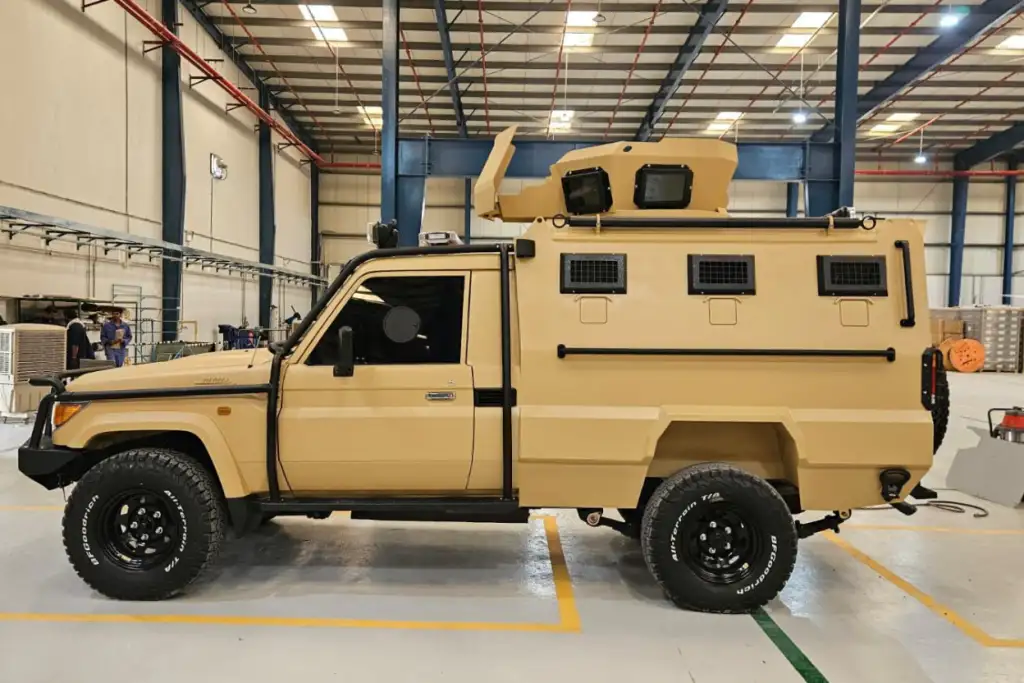

Rhino Ranger 3.0

Mine-Resistant Ambush Protected (MRAP) Vehicle

The Rhino Ranger 3.0 is Hardshell’s next-generation MRAP, engineered to protect and empower armed forces and security units operating in the world’s most demanding environments. Purpose-built for troop transport, command-and-control, and high-risk operations, it combines exceptional protection, superior mobility, and unmatched adaptability in a single mission-ready platform.

MISSION-READY DESIGN

Built to carry a 10-man crew with customizable seating configurations, the Rhino Ranger 3.0 serves as more than just a transport vehicle.

• Configurable for troop transport, command-and-control, or medevac roles.
• Options to prioritize either personnel capacity or equipment space.
• Ideal for specialized missions and high-risk operational environments

PROTECTION

Uncompromising defense against ballistic and explosive threats.

• Ballistic Protection: Certified to CEN 1063 & CEN 1522 (NIJ Level III / CEN FB7/BR7).
• Blast Resistance: STANAG 4569 Level 2A & 2B, designed to withstand mine and IED blasts.
• Twin-layer armored flooring: Tested against 6 kg TNT equivalent blasts under wheel.
• Encapsulated crew compartment with armored fuel tanks and engine protection.
• Armored glass with integrated gun ports, positioned to enable fire from any seat.
• Heavy-duty doors and hatches designed for rapid evacuation and resistance to shockwaves

MOBILITY

Engineered to perform across the harshest terrains.

• ISAS axles with active suspension and Central Tire Inflation System (CTIS).
• Run-flat tires to maintain mobility under fire.
• Advanced suspension and hydraulic steering for agility on rugged terrain.
• Gradeability of 60% and side slope capability of 30%.
• Optional ArcticGrip Deployable Traction System for snow and ice environments

VERSATILITY

More than just a troop carrier, the Rhino Ranger 3.0 adapts to multiple mission needs.

• Troop transport for up to 10 personnel.
• Mobile command unit with communication and control systems
• Medical evacuation platform with capacity for casualty handling.
• Ground support vehicle for logistics and resupply

CREW SURVIVABILITY

Prioritizing soldier safety in every mission.

• Blast-attenuating folding seats with 4-point harnesses.
• Spacious interior for casualty evacuation if required.
• Climate control system with heavy-duty air conditioning, heating, and ventilation.
• Advanced filtration & optional CBRN system to safeguard against chemical, biological, and radiological threats.
• Emergency roof hatches and multiple access doors for fast exit in hostile conditions

MISSION-READY FEATURES

Flexible design that enhances combat effectiveness.

• Roof-mounted turret with weapon integration up to 30 mm caliber
• Rear step and grab handles for rapid embarkation and disembarkation

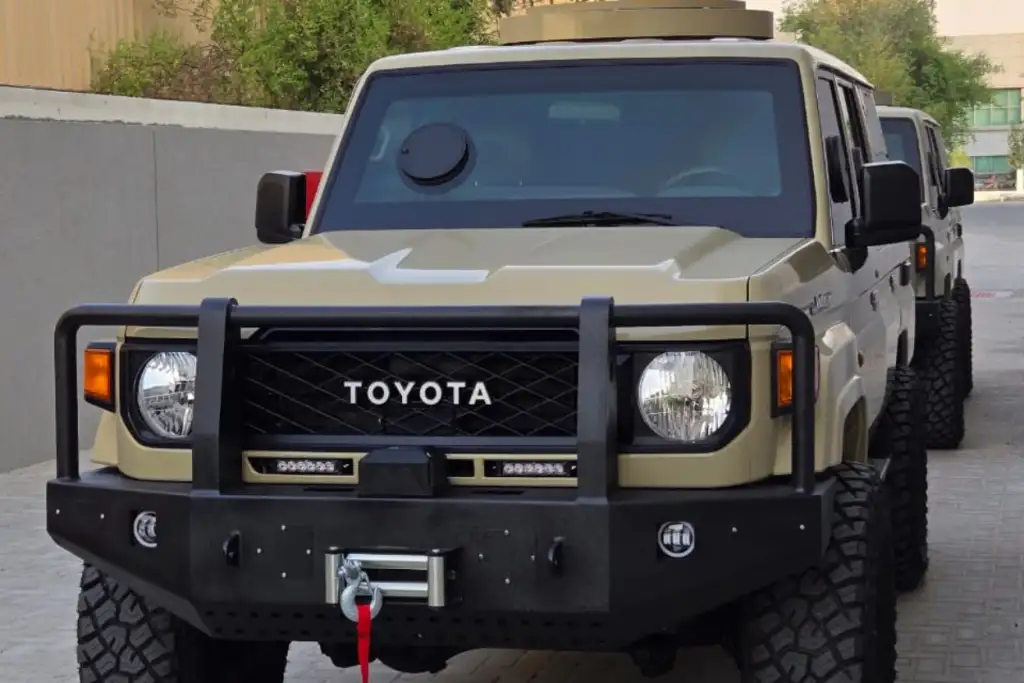

• Heavy-duty ram bumper, towing hooks, and lifting points for field utility
• Storage compartments for tools and mission equipment
• Durable paint system with anti-rust, UV protection, and gravel coating

ADVANCED TECHNOLOGIES

Expanding operational capability with optional systems.

• CBRN Protection System: Creates a toxic-free area inside the vehicle with replaceable external filters, ensuring crew survivability in contaminated zones.

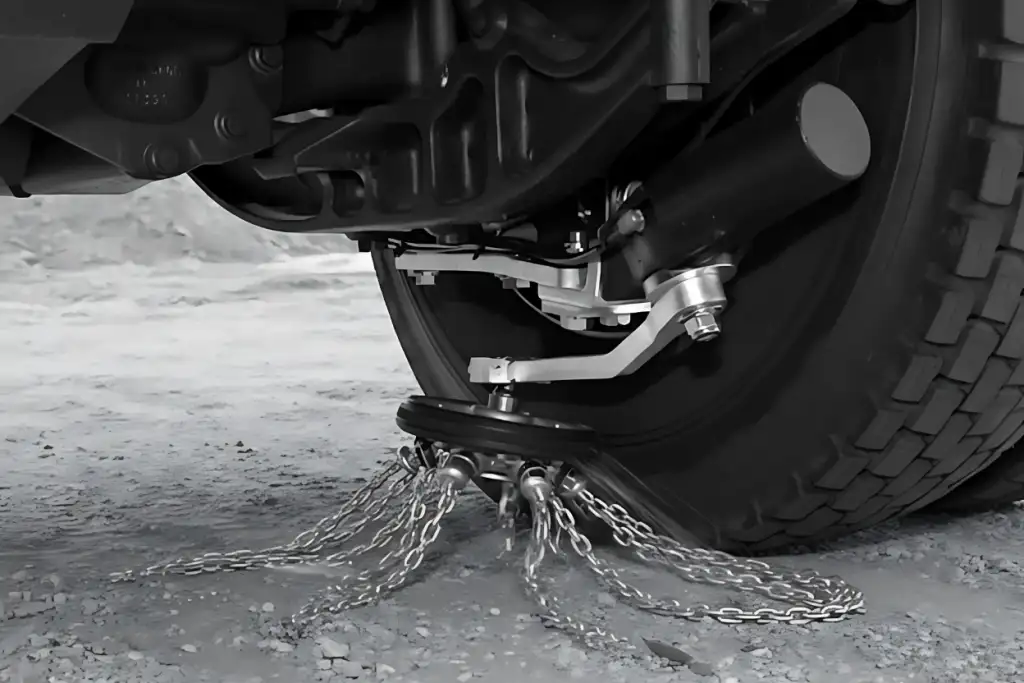

• ArcticGrip Traction System: Deployable high-strength chains for reliable grip on snow and ice, activated by the driver on demand

CERTIFICATIONS & REGISTRATIONS

The Rhino Ranger 3.0 is officially recognized for its rugged design and integration readiness.

• Registered Design with the UK Intellectual Property Office, protecting design and originality.
• Allocated NATO Stock Number (NSN) for seamless integration into global defense supply chains.

These recognitions reinforce the Rhino Ranger 3.0’s legitimacy, compliance, and trustworthiness for defense procurement worldwide

TRUSTED PERFORMANCE

Hardshell delivers world-class protection solutions trusted by governments, defense forces, and elite security operators across the globe.

• ISO-certified manufacturing with stringent international compliance
• Proven track record in supplying special operations units in conflict zones
• Decades of expertise in ballistic, blast, and advanced armor technologies

The Rhino Ranger 3.0 — when mission success depends on protection, mobility, and adaptability.

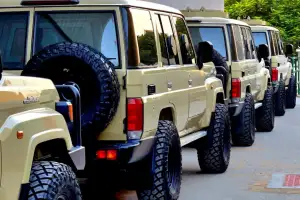

Armoured Fleet Portfolio

At Hard Shell, we offer a comprehensive portfolio of armoured vehicles, purpose-built to meet the evolving needs of military, law enforcement, security agencies, and VIP protection. From discreet civilian SUVs to tactical troop carriers, our engineering ensures the perfect balance of ballistic protection, mobility, and reliability.

Technical Options & Capabilities

Every vehicle is engineered to international ballistic and blast standards (up to B7 / NIJ Level III / VPAM 10), with scalable protection options:

• Discreet Armouring: Civilian appearance maintained while integrating ballistic steel, composite armour, and transparent armour to defeat rifle and fragmentation threats.
• Tactical Carriers: Troop transport and mission-ready vehicles with firing ports, roof hatches, run-flat tyres, blast-protected floors, and reinforced suspensions.
• Custom Engineering: From cash-in-transit vans to APCs and MRAP-style vehicles, we deliver tailored builds that address the unique operational requirements of our clients.

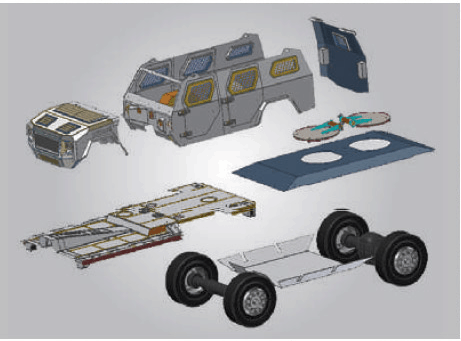

Vehicle Armour – Armored Excellence In Motion

Hard Shell employs the latest technology and design in armoring the vehicles in order to provide the highest level of protection in support of the light armored vehicle. We constantly strive to create the most compatible design for our armored vehicles. Our armored vehicles incorporate the latest armor composite technologies available. We take into account floor protection, suspension and brakes, as well as climate control, run-flat tyres, communications and the survivability of necessary components, such as the fuel tank, battery, and radiator.

Use of Ballistic Steel and Composite Panels: Unparalleled protection With Advanced Material

Using cutting-edge ballistic steel and composite panels is the foundation of Hard Shell’s vehicle armor. These high-strength materials provide protection against projectiles as they are designed to withstand a variety of ballistic threats. Through the use of state-of-the-art metallurgy, Hard Shell improves the vehicle’s resistance to damage without compromising its maneuverability, making it a formidable force in difficult situations.

Floor Protection: Safeguarding From Beneath – A Comprehensive Defense

Hard Shell protects both the external and the interior of vehicles, going beyond traditional armor. In order to protect occupants from any explosive devices underneath the car, our vehicles have reinforced floors. This all-encompassing strategy guarantees passengers’ 360-degree safety, ensuring a safe and worry-free journey.

Flexible multi-layered ballistic Kevlar is sealed to the floor and roof body of the vehicle, which is designed to absorb bomb and ballistic fragmentation.

Run Flat Tyre System: Seamless Mobility Even With Punctured Tyres

Tyres that are flattened might be dangerous in emergency scenarios. In order to solve this issue, Hard Shell offers a Run Flat Tyre System that enables the car to drive even with flat tyres. This smart technology ensures that the vehicle can traverse over difficult terrains without compromising safety and improves mobility during emergencies.

All 5 wheels (4 driven and 1 spare) are supplied with a FINABEL approved run-flat insert band providing the ability to travel a total distance of 50Km.

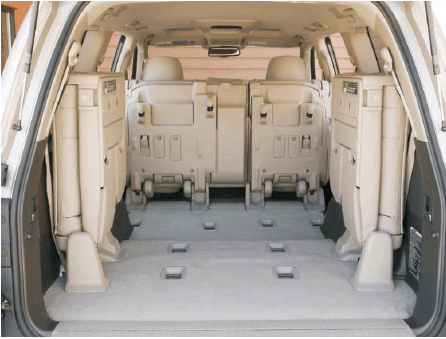

Protected Passenger Cell: Ensuring A Secure Haven Within The Vehicle

Our Protected Passenger Cell concept forms the foundation of our vehicle armor. Protecting its occupants from outside threats is the goal of this smartly designed container. Hard Shell puts the safety and wellbeing of people within the vehicle first by carefully designing and testing the interior to create a secure environment.

The passenger cabin is protected according to protection level specified including all sidewalls, doors, pillars, roof, floor, firewall, and rear bulkhead.

The passenger cell is protected using ballistic steel and is applied to the following areas:

• RH and LH sidewalls
• Side Doors
• A, B, C and D pillars
• Roof
• Front bulkhead (Engine firewall)
• Rear bulkhead

Bullet resistant glass adequate to defeat the specified threat level (with anti-spall liner), is applied to the following glazed areas.

• Windscreen
• Front doors
• Rear
• Passenger doors
• Quarter Panels
• Rear Bulkhead

Fuel System Protection: Securing The Heart Of The Vehicle For Uninterrupted Operation

It becomes essential to safeguard the vehicle’s fuel system in volatile situations. Hard Shell incorporates advanced technologies to safeguard the fuel system from possible threats. Ballistic steel is used to shield fuel tanks from all sides. This extra safety measure gives drivers peace of mind in the face of uncertainty by guaranteeing that the vehicle will continue to function even under difficult circumstances.

Why Choose Hard Shell: Ultimate Protection For Vehicle Armor

All Hard Shell protected vehicles are manufactured in strict compliance to our Quality Standard and follow strict process controls to ensure high product quality. Hard Shell armored vehicle resembles a normal civilian vehicle. It is low profile – meaning that the vehicle is nearly visually identical to a standard vehicle. Therefore unwanted attention while traveling is avoided.

Every aspect of our vehicle armor technology demonstrates Hard Shell’s dedication to safety. Our armored vehicles redefine security on the move with their creative use of advanced materials and their precise design and engineering. Choose Hard Shell for unparalleled protection, where cutting-edge technology meets a steadfast commitment to passenger safety.
